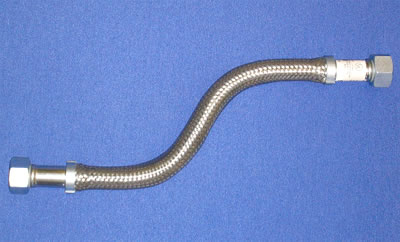

| Flex Drop |
 |
| Standard lengths available: |
| - |
700mm(28"), 1000mm(40"), 1200mm(47"), 1500mm(59"), 1800mm(71") |
| - |
other lengths available for special orders |

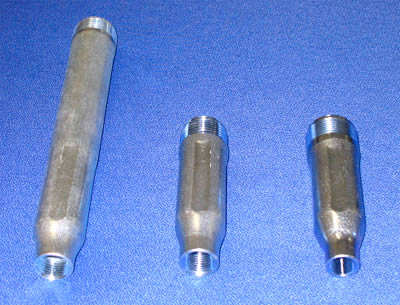

| Reducers |
 |
| - |
15mm(1/2"), 20mm(3/4") outlets |
| - |
length - 120mm standard |
| - |
special lengths are available for projects |

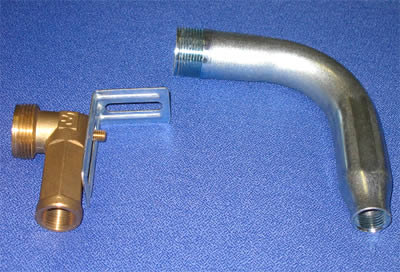

| 90o Elbow Reducers |
 |
| - |
15mm(1/2") outlet |
| - |
long: 150mm (6") for spaces no less than 160mm(7") |
| - |
short: 80mm (3 1/4") for spaces no less than 100mm(4") |

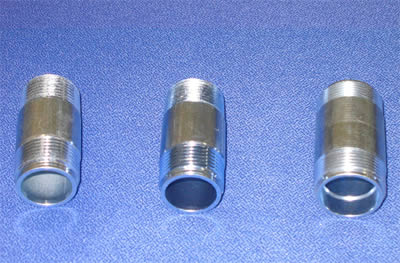

| Nipples |
 |
| - |
25mm for connection to pipe outlets |

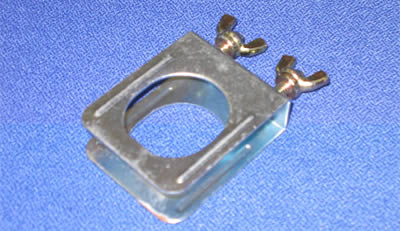

| Ceiling Grid Clamps |
 |
| - |
58mm for semi recessed heads |
| - |
90mm for flush mounted heads |

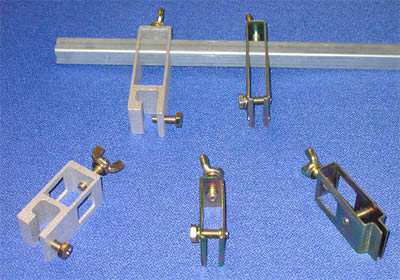

| Reducer Brackets |
 |
| |
|
| |
|

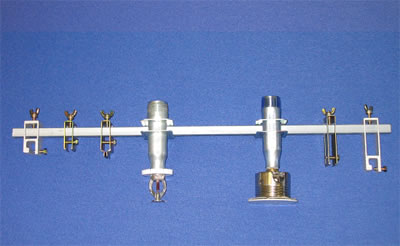

| Caring Bars |
 |
| - |
15mm(0.6") square bar |
| - |
standard length - 700mm(27.5") |
| - |
special lengths are available for projects |

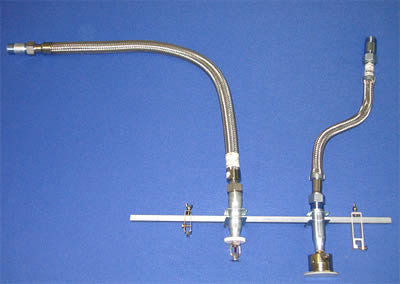

| Typical Arrangements |
1.  2.  3.  |
| Ceiling Grid Fixing |
| - |

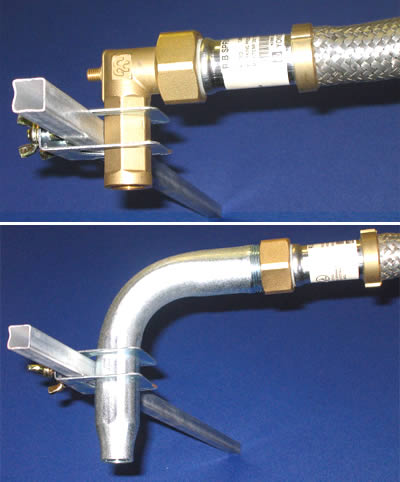

Standard arrangement (Image 1) |
| - |
90o Elbow Reducers (Image 2) |
| - |

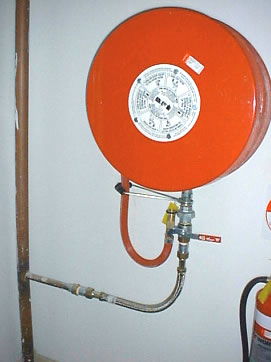

Hose Reels (Image 3) |
|
|
|
